Technical overview
| Power supply type | TFX V2.31 |
| Connectors | |
| 20+4 pin mainboard | 1x 37 cm |
| 4+4 pin mainboard 12V EPS | 1x 40 cm |
| PCI-Express | 1x PCI-Express 6 pin 40 cm 1x PCI-Express 6+2 pin 52 cm |
| SATA | 4 (1x 37 / 1x 50 / 1x 65 / 1x 80 cm) |
| PATA | 2 (1x 53 / 1x 67 cm) |
| FDD | 1x 82 cm |
| Mark of conformity | CE |
| Fan | 80 mm |
| PFC | active |
| Dimension h x w x d | 69 x 85 x 175 mm |
| Weight (retail) | 1,23 kg |
| Power rating | 350W |
| max. peak load | 400W |
| +3,3V | 15A |
| +5V | 15A |
| max. combined | 97W |
| +12V | 32A |
| max. combined | 397W |
| Efficiency | >85% |
| Standby consumption | 0,24W - ErP 2013 |
| Security circuitry | OVP = Over-Voltage Protection OPP = Over-Power Protection SCP = Short-Circuit Protection |
| Multirange (110V/220V) | no |
| Haswell compatible | yes |
| Barcode | 4260070124792 |
| Manufacturer code | LC400TFX V2.31 |
PDF:
Characteristics:

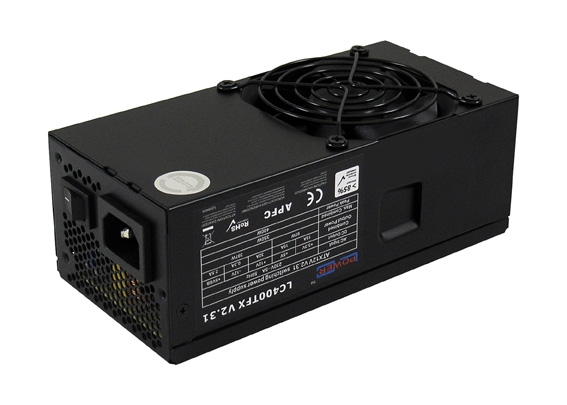

The TFX PSU LC400TFX V2.31 by LC-POWER offers a good price-performance ratio. Thanks to its 80 mm fan, the power supply lets you experience a stress-free and silent operation for your HTPC. Despite the low sound level, the power supply offers a good cooling capacity for your system thanks to its ventilation grille on its back. The power supply features all relevant connectors of the office sector.
The state-of-the-art energy saving technology decreases the power consumption in standby mode (0,24W) and increases the efficiency of the power supply > 85%!
350W
Incl. Active PFC (power factor correction for an efficient use of the spent energy) and all relevant safety circuitry
